Spares

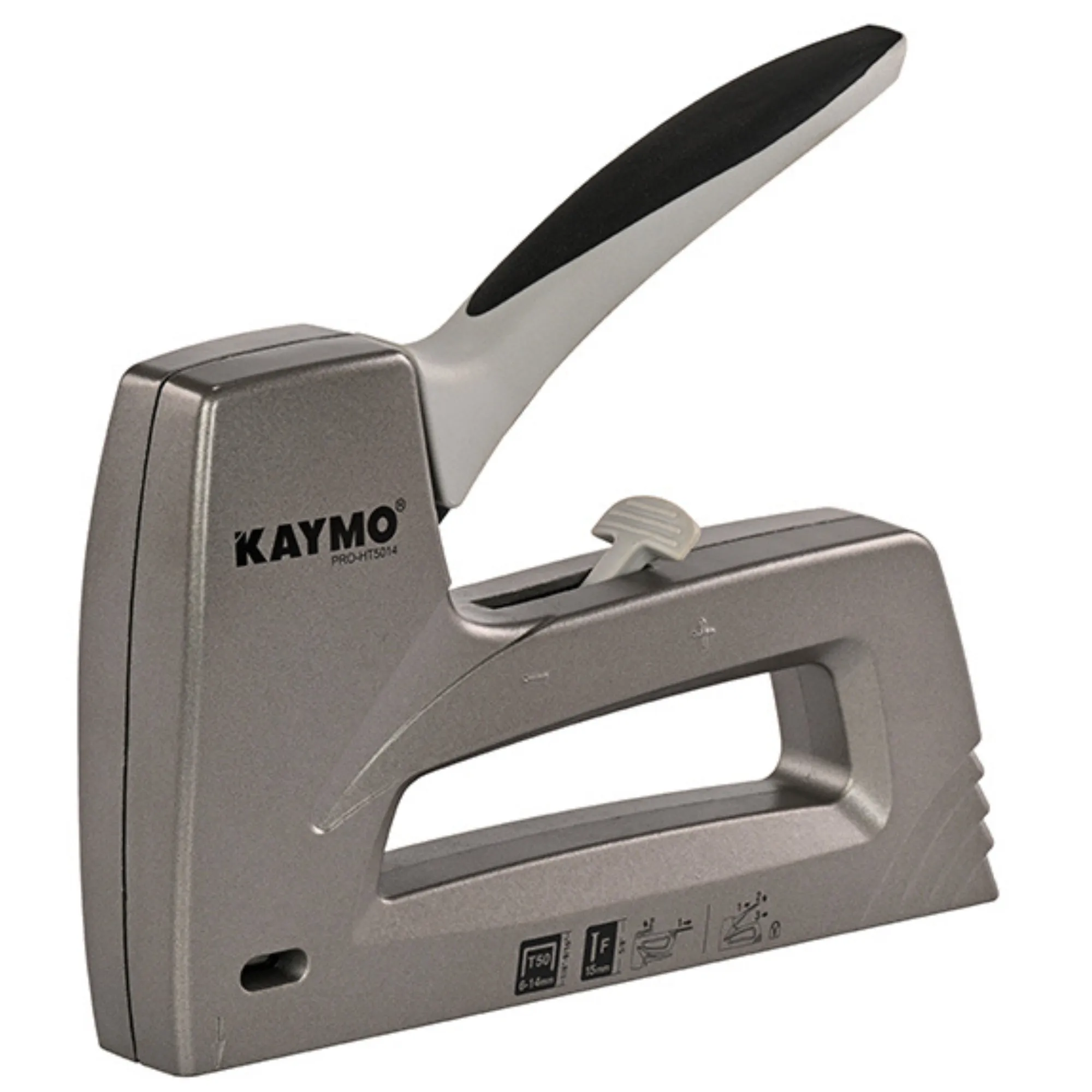

| TOOL MODEL: | PRO-HT5014 | |||

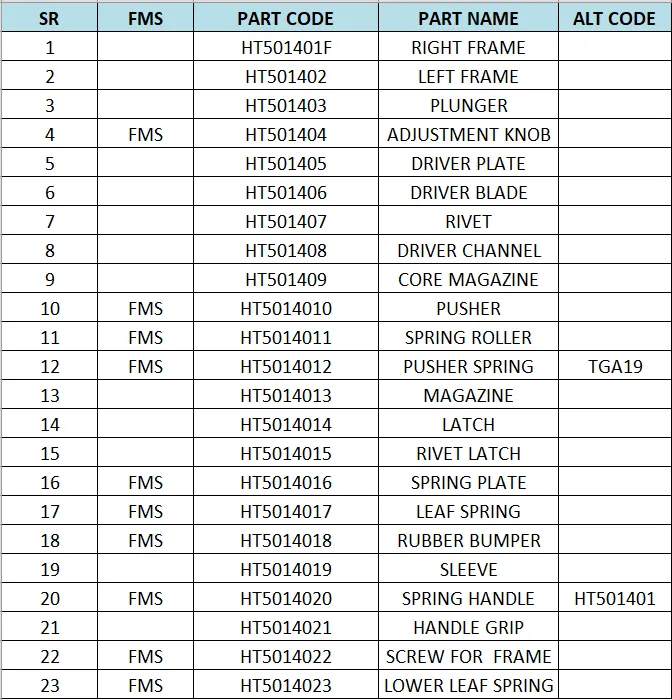

| SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | HT501401F | RIGHT FRAME | ||
| 2 | HT501402 | LEFT FRAME | ||
| 3 | HT501403 | PLUNGER | ||

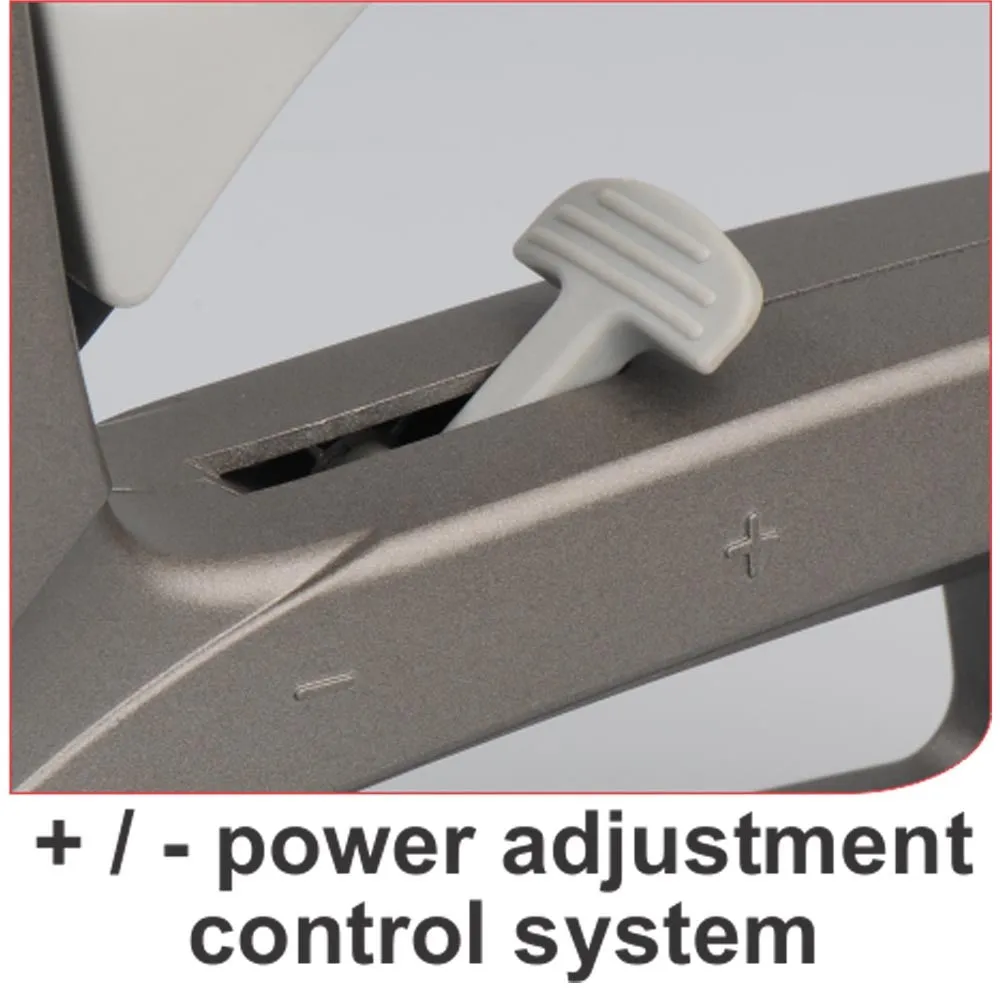

| 4 | FMS | HT501404 | ADJUSTMENT KNOB | |
| 5 | HT501405 | DRIVER PLATE | ||
| 6 | HT501406 | DRIVER BLADE | ||
| 7 | HT501407 | RIVET | ||
| 8 | HT501408 | DRIVER CHANNEL | ||
| 9 | HT501409 | CORE MAGAZINE | ||
| 10 | FMS | HT5014010 | PUSHER | |
| 11 | FMS | HT5014011 | SPRING ROLLER | |
| 12 | FMS | HT5014012 | PUSHER SPRING | TGA19 |
| 13 | HT5014013 | MAGAZINE | ||
| 14 | HT5014014 | LATCH | ||
| 15 | HT5014015 | RIVET LATCH | ||
| 16 | FMS | HT5014016 | SPRING PLATE | |
| 17 | FMS | HT5014017 | LEAF SPRING | |
| 18 | FMS | HT5014018 | RUBBER BUMPER | |
| 19 | HT5014019 | SLEEVE | ||
| 20 | FMS | HT5014020 | SPRING HANDLE | HT501401 |
| 21 | HT5014021 | HANDLE GRIP | ||
| 22 | FMS | HT5014022 | SCREW FOR FRAME | |
| 23 | FMS | HT5014023 | LOWER LEAF SPRING |

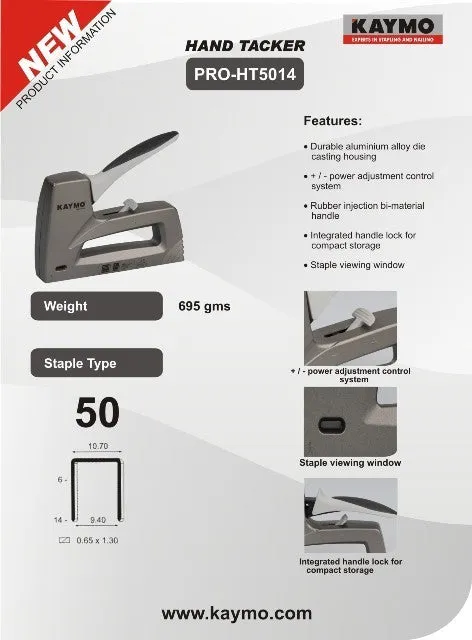

One Sheeter
Application
| Onsite / Repair work for wooden frame | |
| To fix screens onto the wooden frame | |
| To fix mosquito nets onto wooden frames | |
| To fix labels / plastic lining to wooden cases |
