lift and increase the track width of your Tundra.

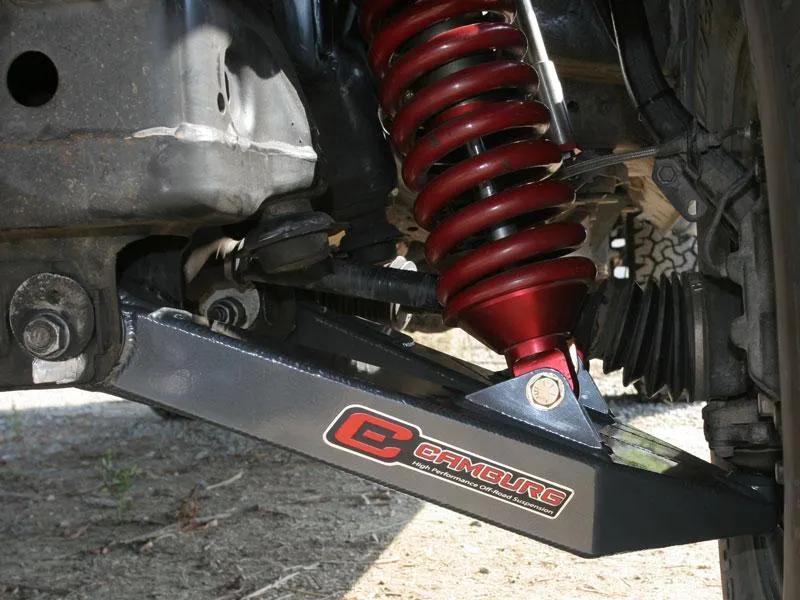

This long travel kit will provide 13″ Of travel and widens the trucks front stance 3.5″ per side. Fiberglass fenders are a must. The Boxed lower Arms pivot on massive 1″ uni-balls instead of cheap bushings. The upper arm replaces the ball-joint with a 1″ uniball and uses a heat-treated stainless steel adapter on the spindle. This very kit has been raced on in Baja with great results.

SPECS:

• LIFT: 2.5-4 in (front)
• WHEEL TRAVEL: 13in
• TRACK WIDTH: 3.5 in per side
• WHEEL SIZE: 16-17 in
• MAX BACKSPACING: 4.75 in
• TIRE SIZE: 285/75/16 or 285/70/17

WHAT'S INCLUDED:

• Uniball upper arms
• Boxed lower arms
• SS extended brake lines
• Limit straps
• SS steering extensions
• Coilover mounts
• Hardware

TECH INFO:

• SHOCK SPECS: 2.5 x 8″ remote coilover 18″ x 600 lb coils 22.3″ extended | 14.3″ collapsed Flat/Lowered lower spring seat 1.25″ width shock spacers 90 degree res. fitting on shock.

• Fiberglass Fenders are required

• When running a bypass shock you or a shop will need to fabricate the upper mounts.
